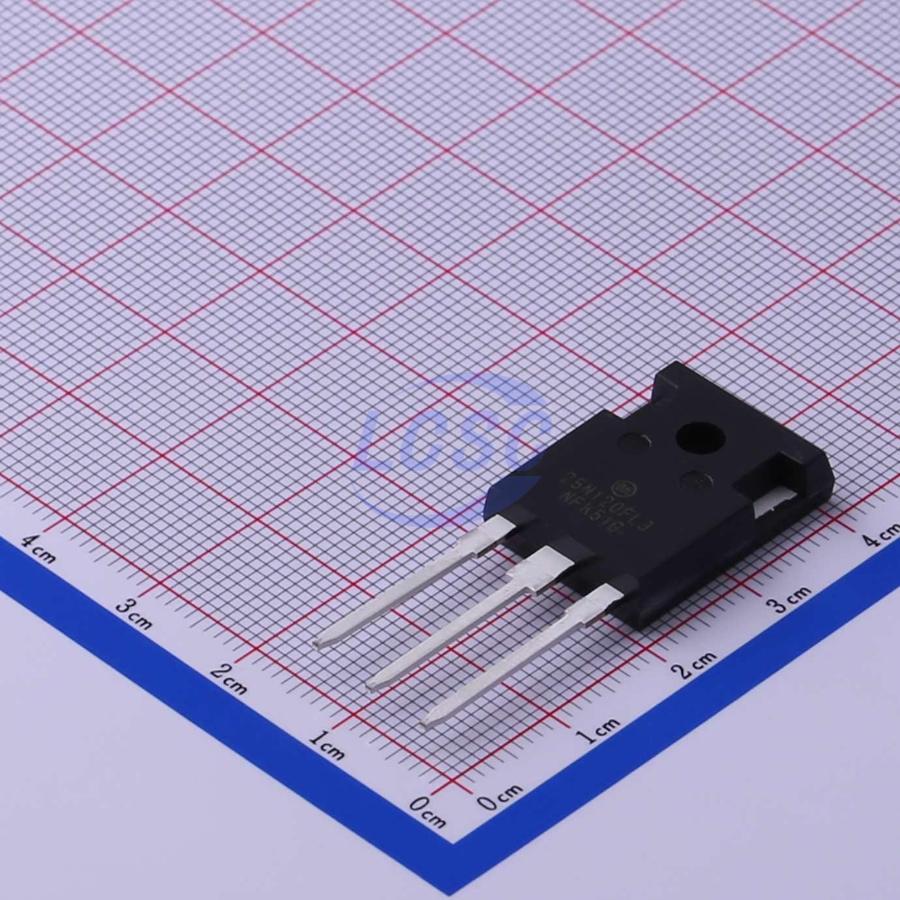

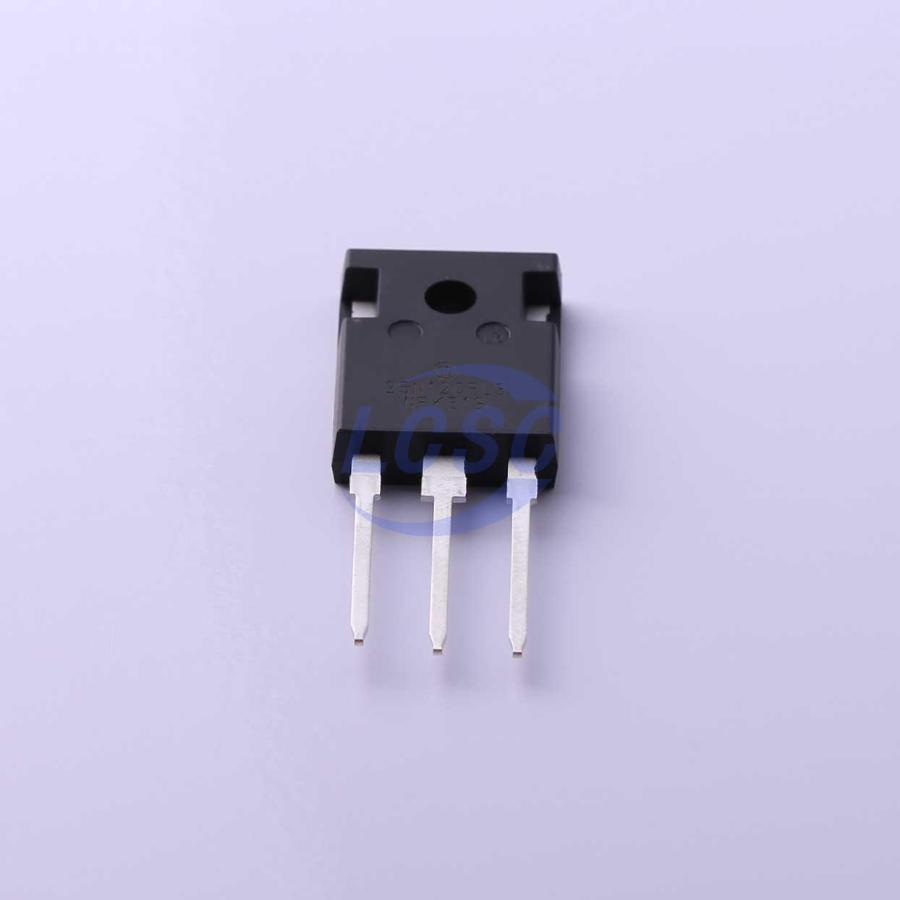

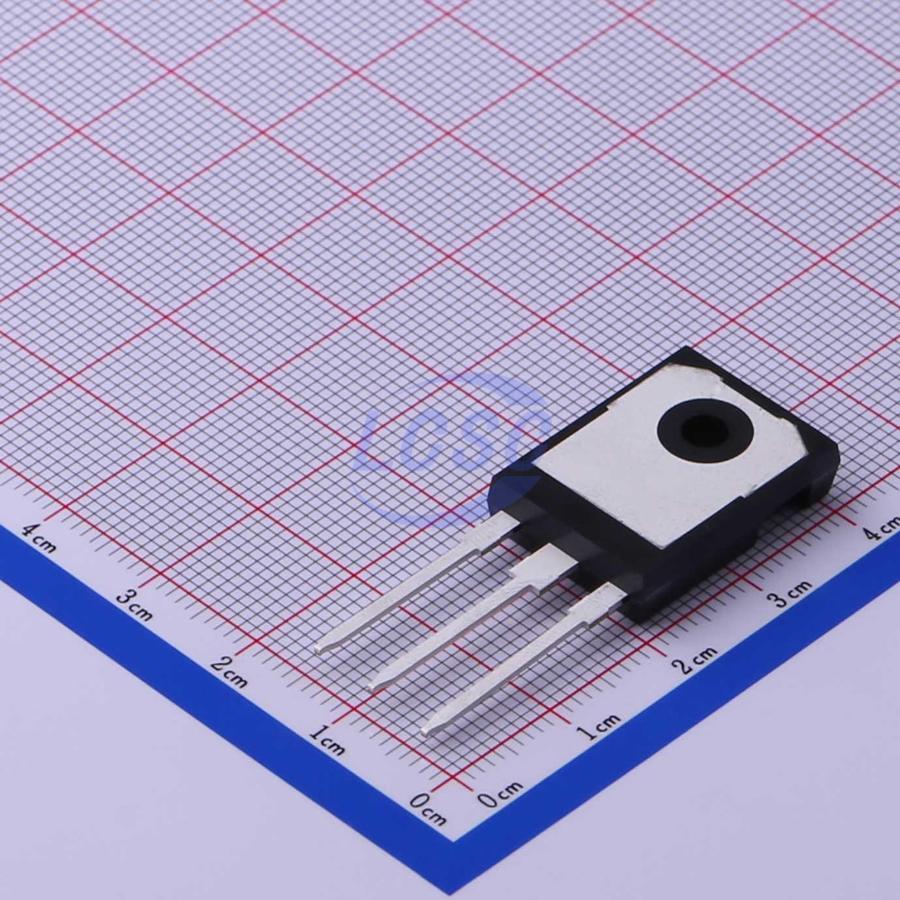

Manufacturer: onsemi
Mfr. Part #: NGTB25N120FL3WG
Part Number: C94822
Package: TO-247-3
Description: 349W 100A 1.2kV FS(Field Stop) TO-247-3 IGBT Transistors / Modules ROHS
Delivers By: Wednesday, March 25, 2026 *
Out of stock
📦 Standard Packaging: 30/Piece
Products Specifications
Td(off)
109ns
Pd - Power Dissipation
349W
Td(on)
15ns
Operating Temperature
-55℃~+175℃@(Tj)
Current - Collector(Ic)
100A
Collector-Emitter Breakdown Voltage (Vces)
1.2kV
IGBT Type
FS(Field Stop)
Gate Charge(Qg)
136nC
Reverse Recovery Time(trr)
114ns
Switching Energy(Eoff)
700uJ
Turn-On Energy (Eon)
1mJ
Additional Information
Minimum Qty: 1
Multiple : 1
Standard Packaging: 30/Piece
