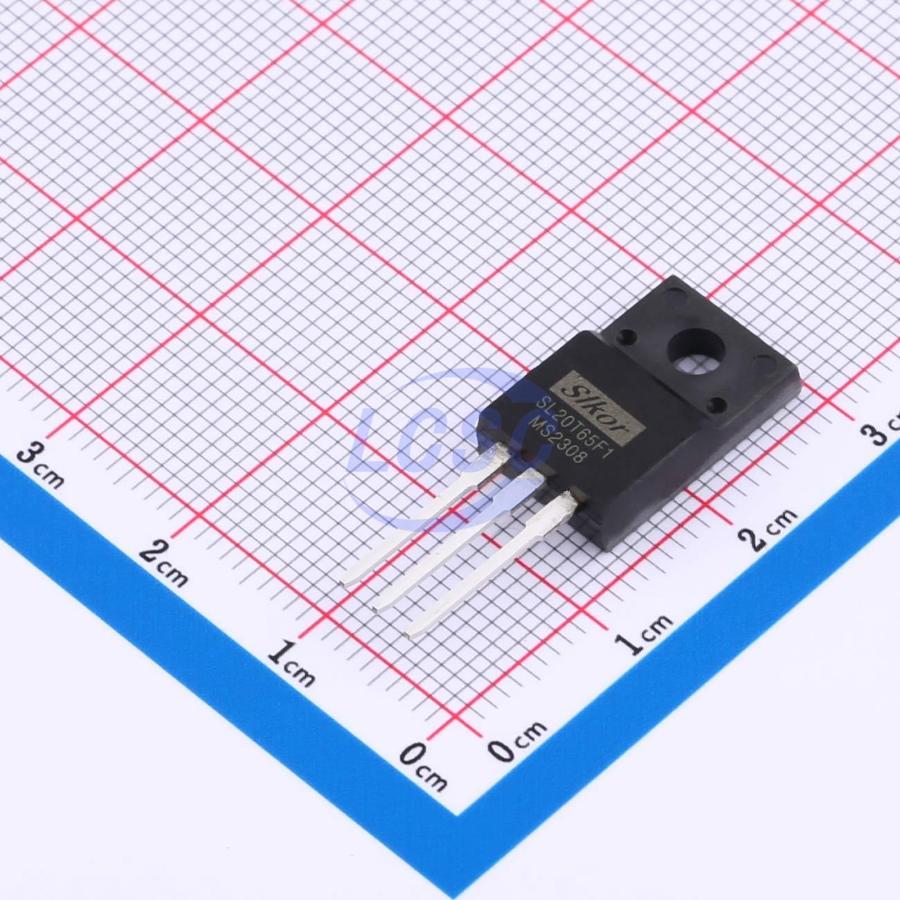

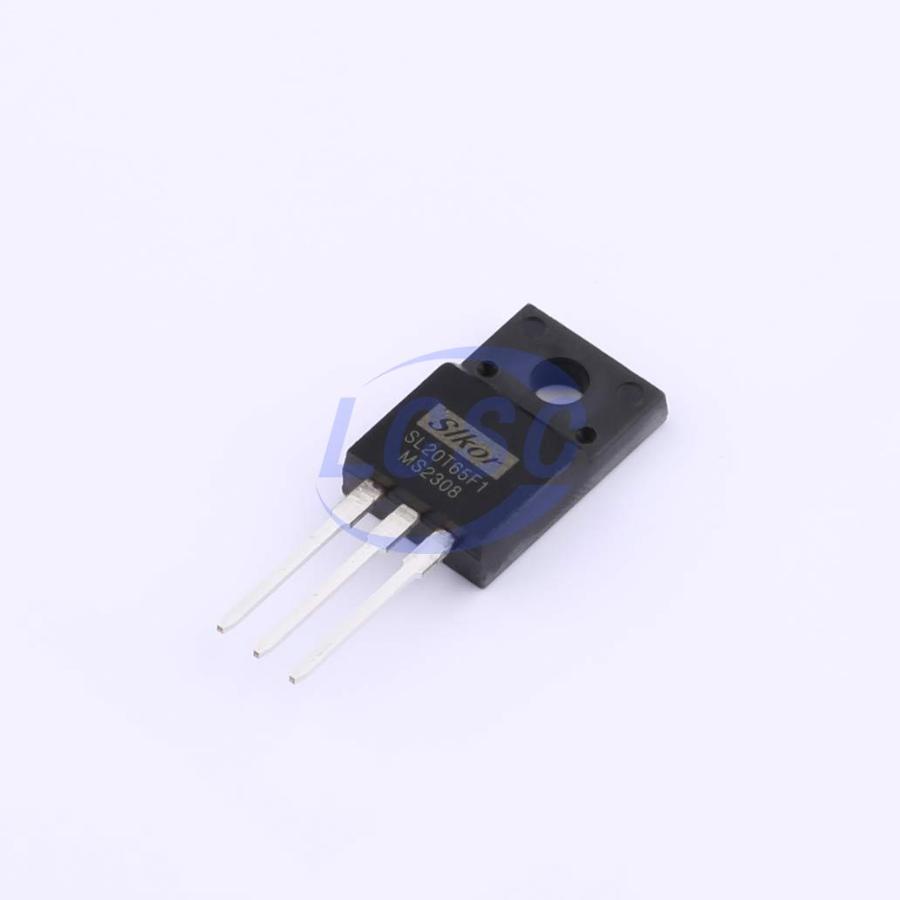

Manufacturer: Slkor(SLKORMICRO Elec.)
Mfr. Part #: SL20T65F1
Part Number: C6800599
Package: TO-220F
Description: 46W 40A 650V FS(Field Stop) TO-220F IGBT Transistors / Modules ROHS
Delivers By: Monday, March 23, 2026 *
Out of stock
📦 Standard Packaging: 50/Piece
Products Specifications
Pd - Power Dissipation
46W
Td(off)
52ns
Operating Temperature
-55℃~+150℃@(Tj)
Td(on)
16ns
Current - Collector(Ic)
40A
Collector-Emitter Breakdown Voltage (Vces)
650V
IGBT Type
FS(Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic)
4.5V@250uA
Gate Charge(Qg)
43.9nC@20A,15V
Vce Saturation(VCE(sat))
1.6V@20A,15V
Switching Energy(Eoff)
300uJ
Turn-On Energy (Eon)
790uJ
Input Capacitance(Cies)
1.5nF@25V
Voltage - Forward(Vf)
1.4V@20A
Additional Information
Minimum Qty: 1
Multiple : 1
Standard Packaging: 50/Piece
