Manufacturer: Slkor(SLKORMICRO Elec.)
Mfr. Part #: SL50T120FZ
Part Number: C5375317

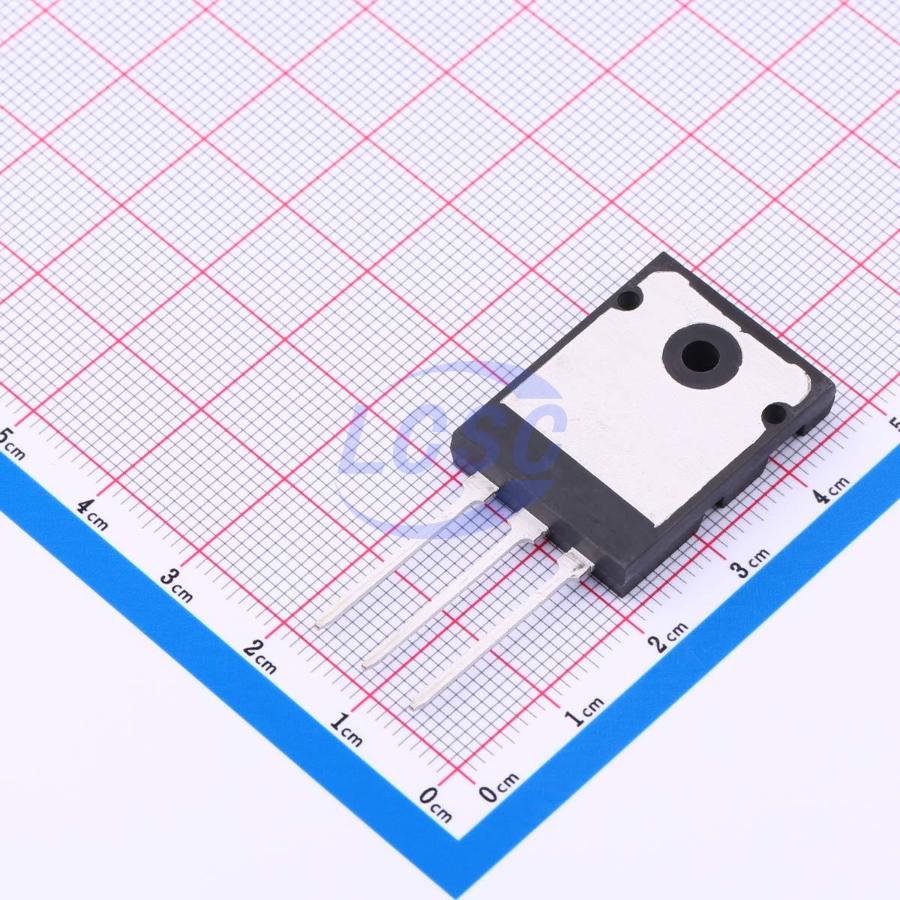

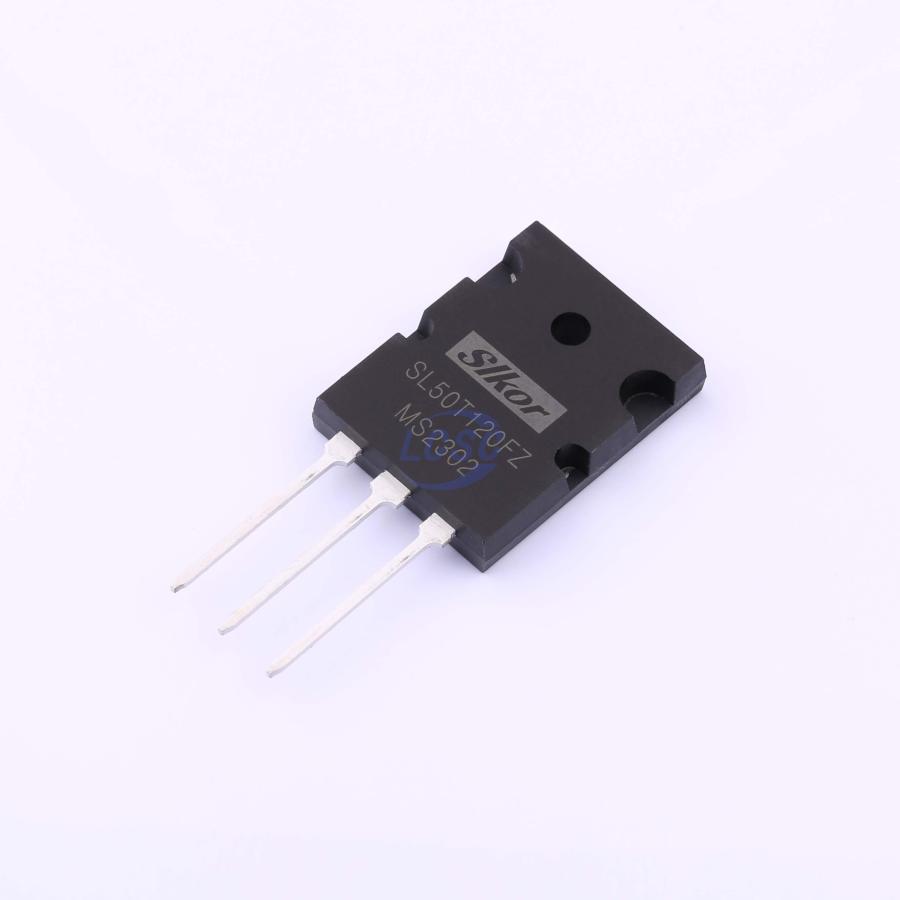

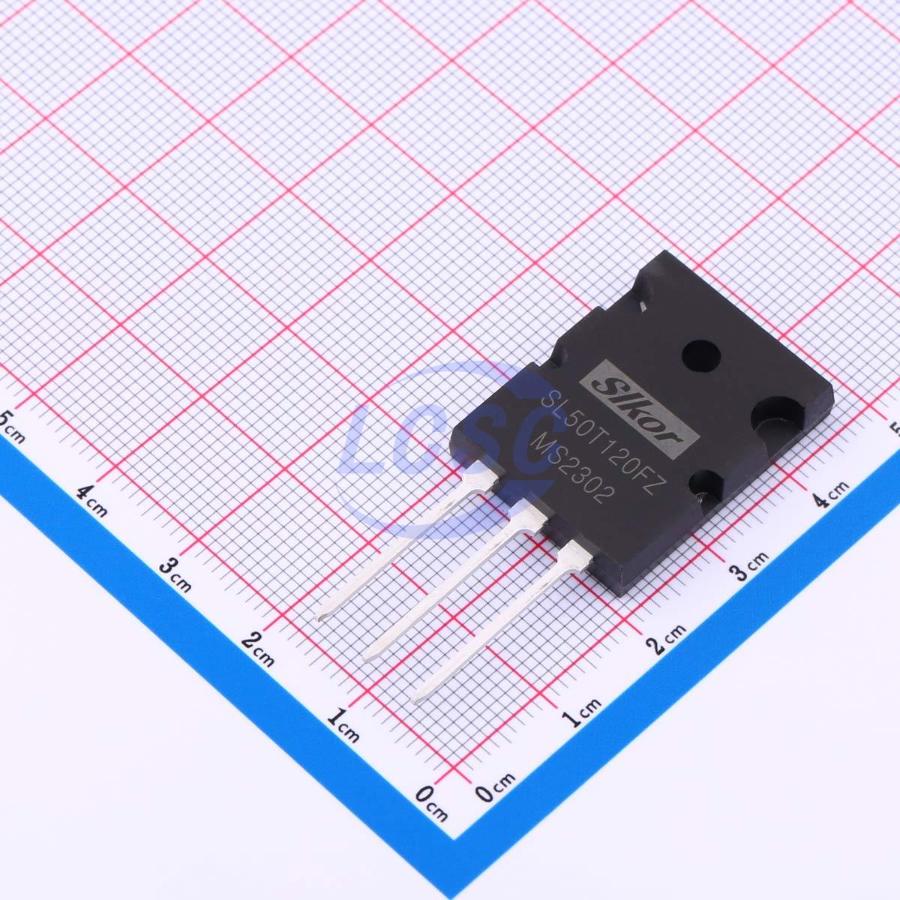

Package: TO-264
Description: 100A 1.2kV TO-264 IGBT Transistors / Modules ROHS
Delivers By: Monday, March 23, 2026 *
Out of stock
📦 Standard Packaging: 25/Piece
Products Specifications
Td(off)
282ns
Td(on)
118ns
Operating Temperature
-55℃~+175℃@(Tj)
Current - Collector(Ic)
100A
Collector-Emitter Breakdown Voltage (Vces)
1.2kV
Input Capacitance(Cies)
7.383nF@20V
Voltage - Forward(Vf)
2V@50A
Gate-Emitter Threshold Voltage (Vge(th)@Ic)
5.5V@250uA
Gate Charge(Qg)
311nC@50A,15V
Vce Saturation(VCE(sat))
2.2V@50A,15V
Reverse Recovery Time(trr)
256ns
Switching Energy(Eoff)
1.4mJ
Turn-On Energy (Eon)
4.4mJ
Additional Information
Minimum Qty: 1
Multiple : 1
Standard Packaging: 25/Piece
