Manufacturer: Slkor(SLKORMICRO Elec.)
Mfr. Part #: SL75T120FZ
Part Number: C5375318
Package: TO-264

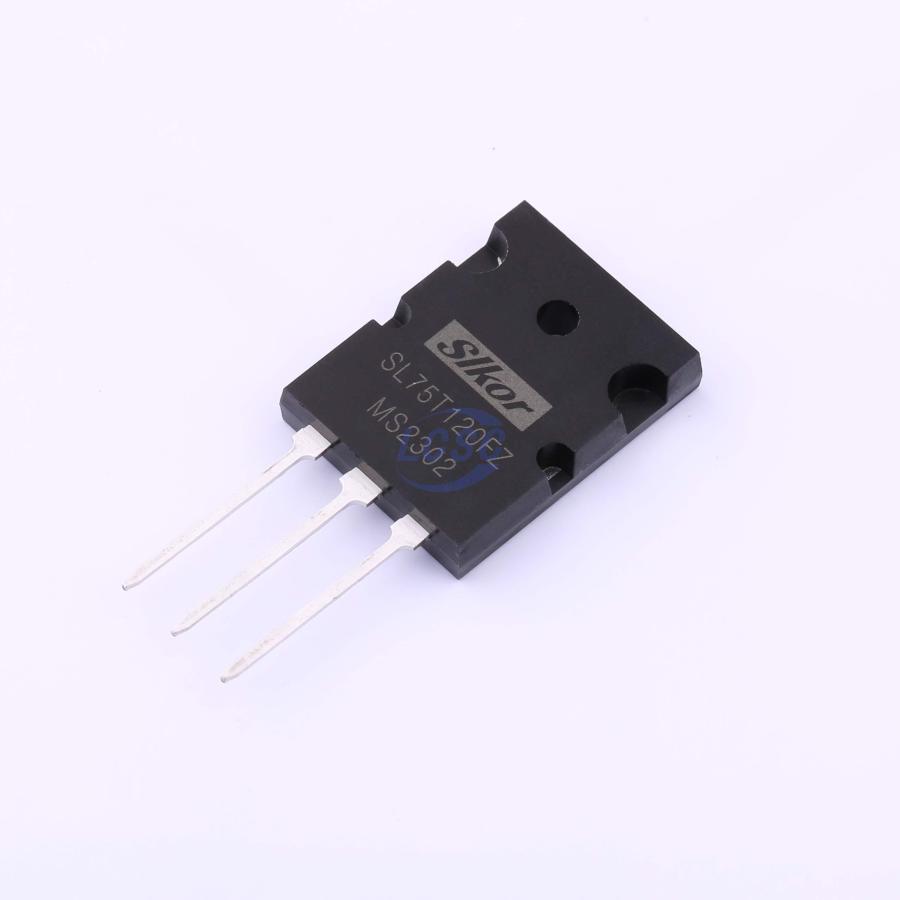

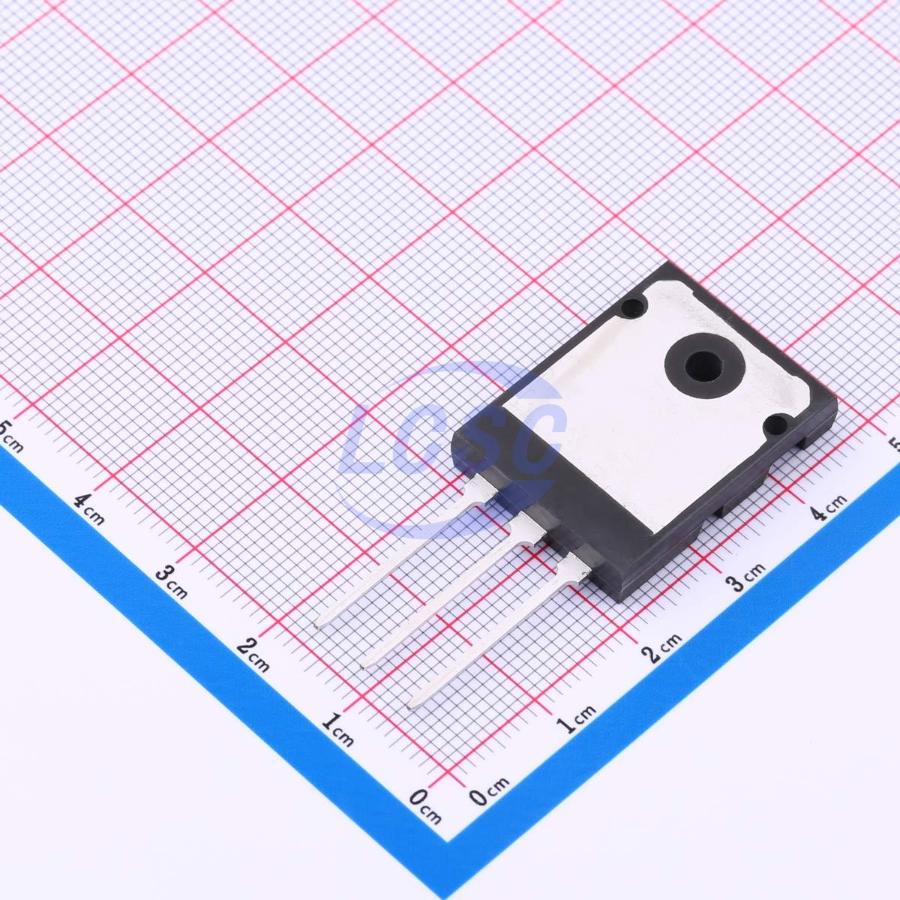

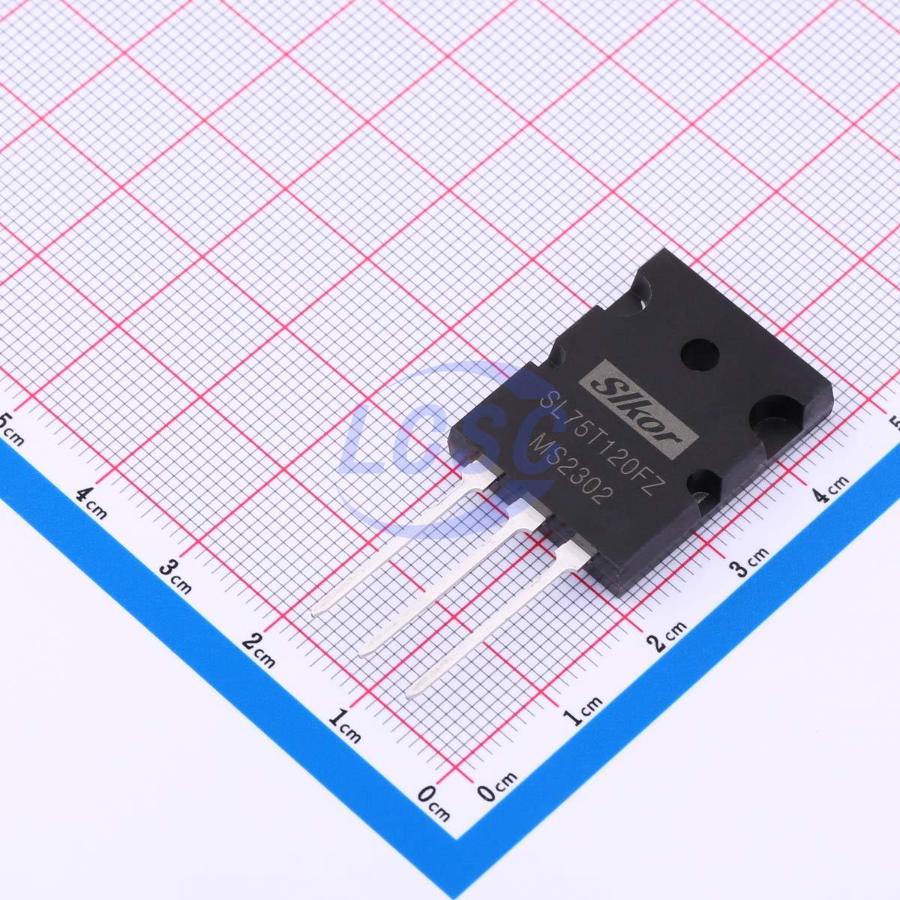

Description: 625W 115A 1.2kV TO-264 IGBT Transistors / Modules ROHS
Delivers By: Monday, March 23, 2026 *
Out of stock
📦 Standard Packaging: 25/Piece
Products Specifications
Pd - Power Dissipation
625W
Td(off)
130ns
Td(on)
205ns
Operating Temperature
-55℃~+150℃@(Tj)
Current - Collector(Ic)
115A
Collector-Emitter Breakdown Voltage (Vces)
1.2kV
Input Capacitance(Cies)
7.348nF@30V
Gate-Emitter Threshold Voltage (Vge(th)@Ic)
4.5V@250uA
Gate Charge(Qg)
270nC@75A,15V
Vce Saturation(VCE(sat))
1.85V@75A,15V
Reverse Recovery Time(trr)
530ns
Switching Energy(Eoff)
6mJ
Turn-On Energy (Eon)
19.1mJ
Additional Information
Minimum Qty: 1
Multiple : 1
Standard Packaging: 25/Piece
Related Resources
- Datasheet
- EasyEDA Model
