Manufacturer: STMicroelectronics
Mfr. Part #: STGB20M65DF2
Part Number: C472552

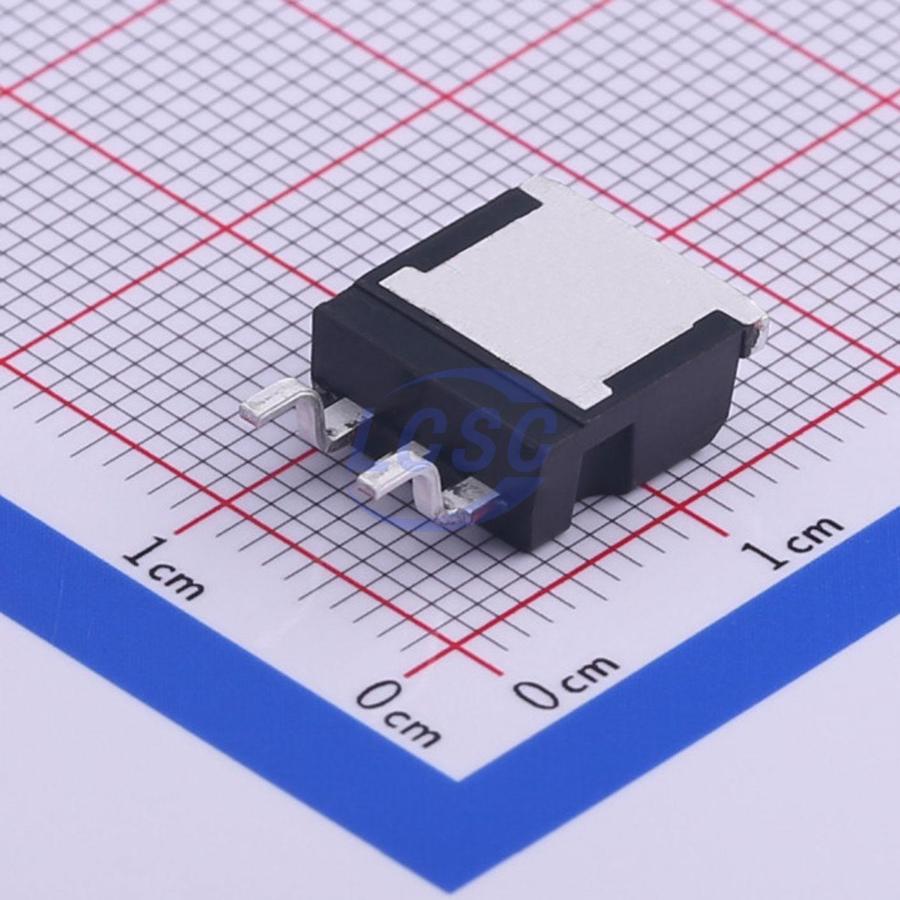

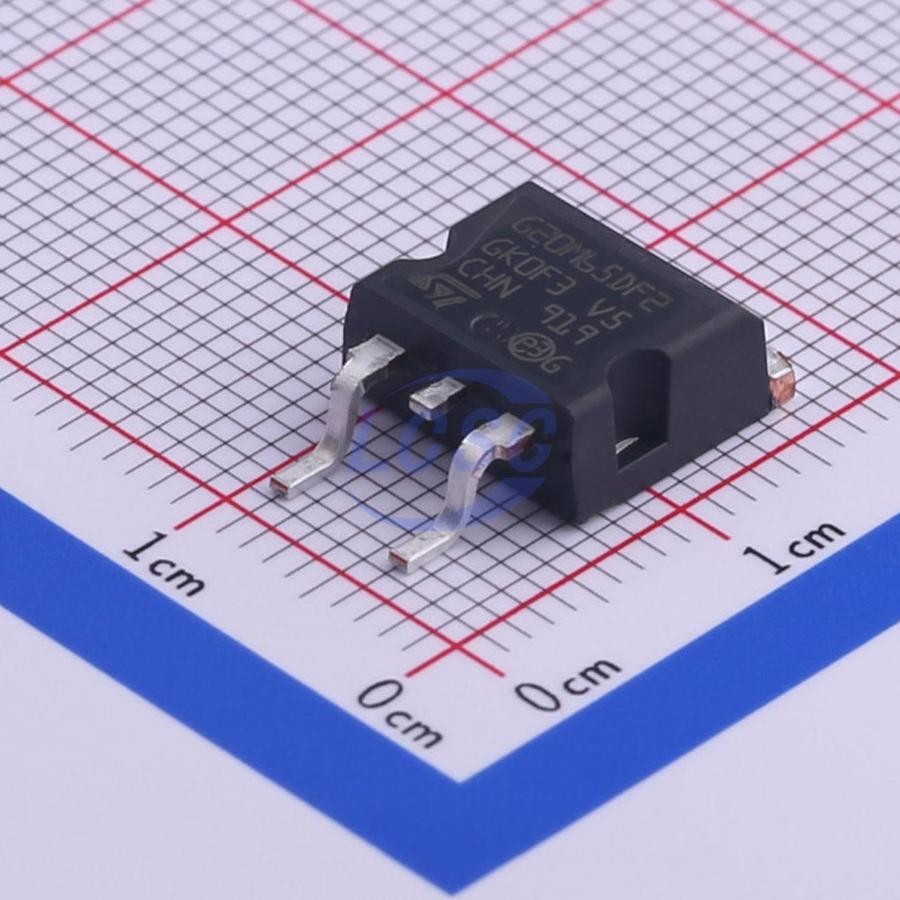

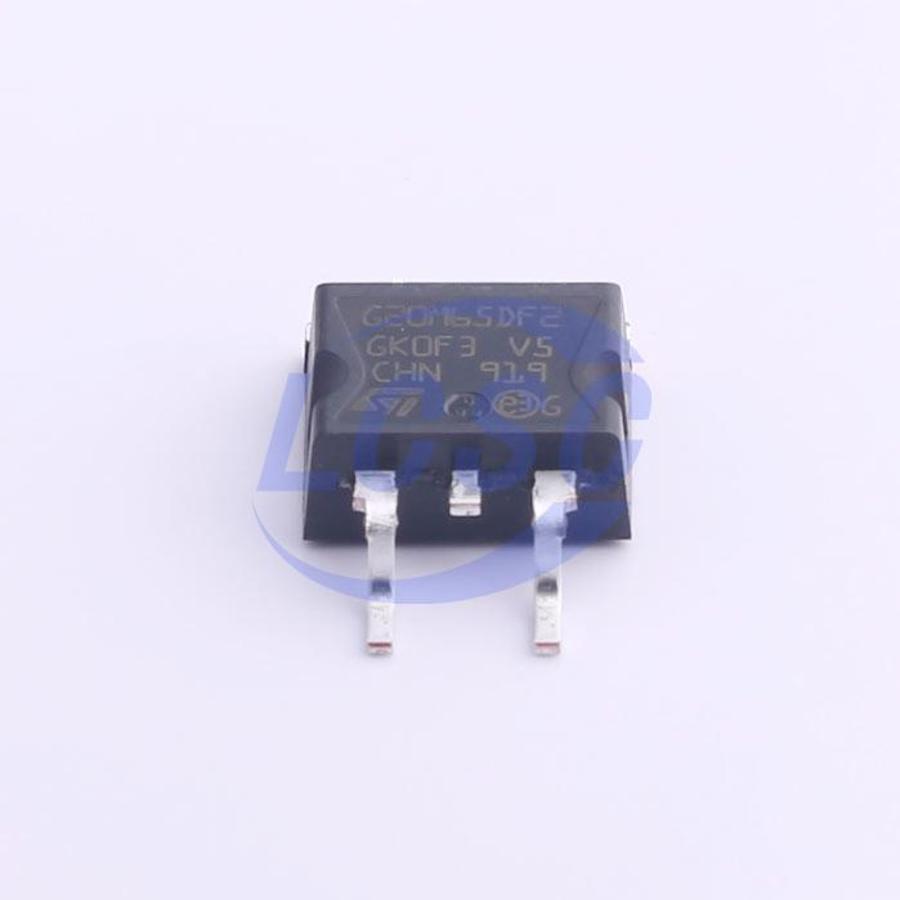

Package: D2PAK
Description: 166W 40A 650V FS(Field Stop) D2PAK IGBT Transistors / Modules ROHS
Delivers By: Monday, March 23, 2026 *
Out of stock
📦 Standard Packaging: 1000/Piece
Products Specifications
Td(off)
108ns
Pd - Power Dissipation
166W
Td(on)
26ns
Operating Temperature
-55℃~+175℃@(Tj)
Current - Collector(Ic)
40A
Collector-Emitter Breakdown Voltage (Vces)
650V
IGBT Type
FS(Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic)
2V@15V,20A
Gate Charge(Qg)
63nC
Reverse Recovery Time(trr)
166ns
Switching Energy(Eoff)
560uJ
Turn-On Energy (Eon)
140uJ
Additional Information
Minimum Qty: 1
Multiple : 1
Standard Packaging: 1000/Piece
