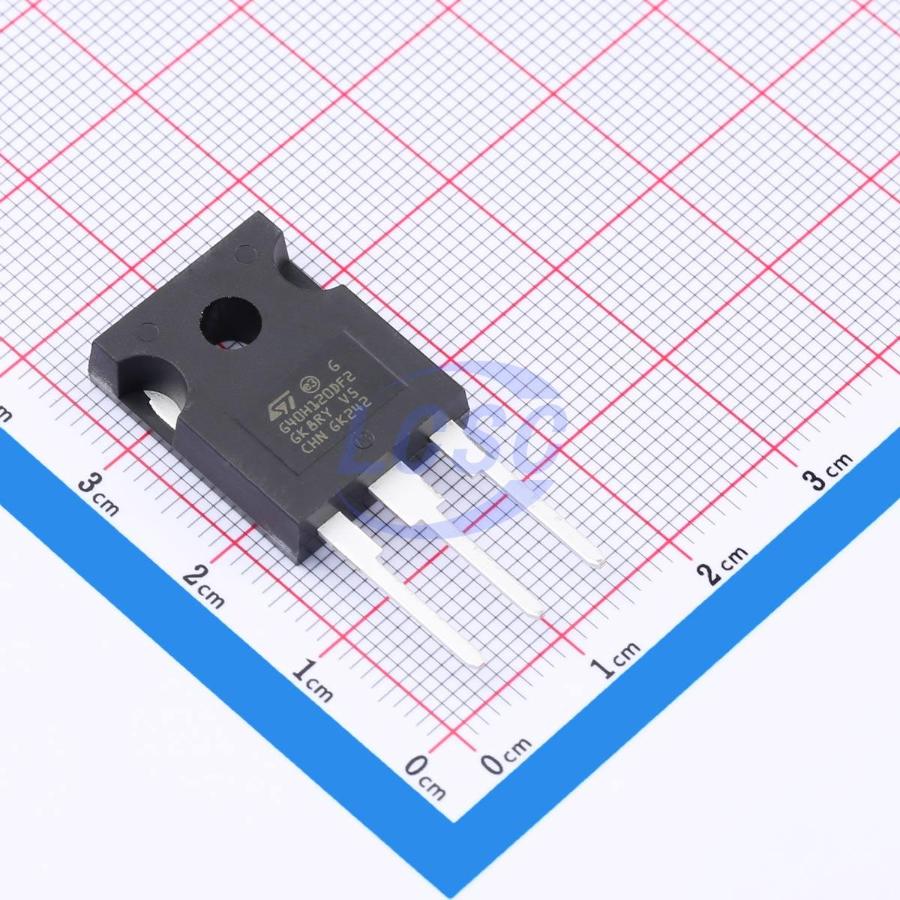

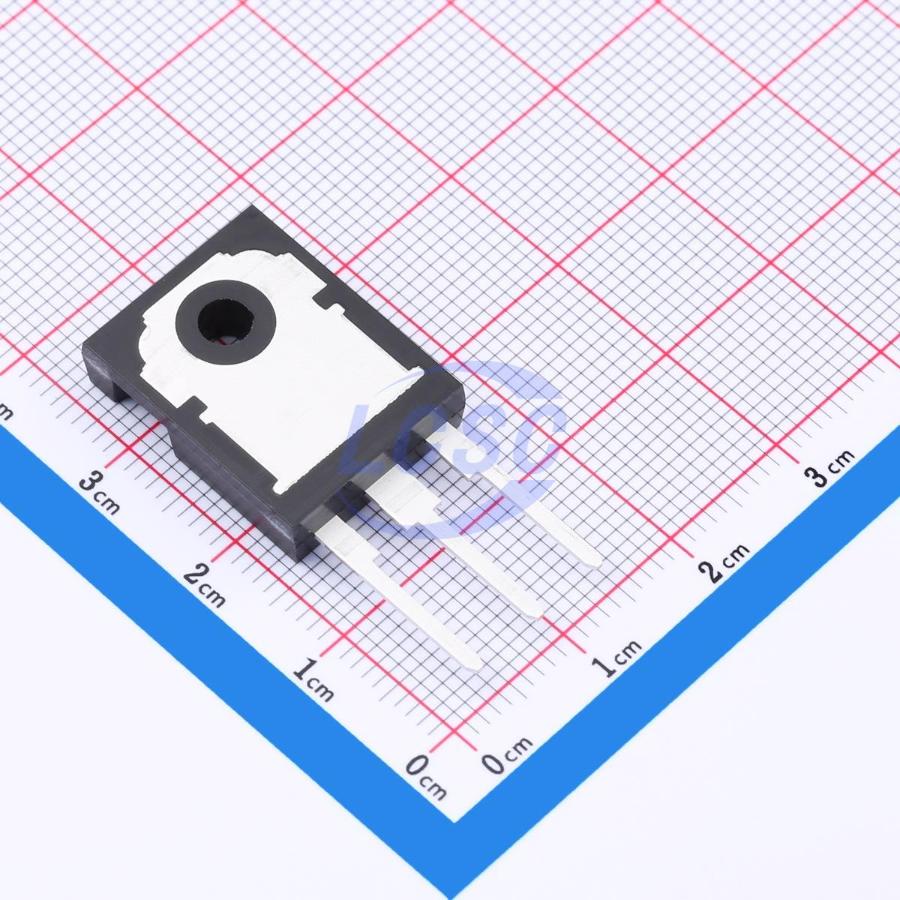

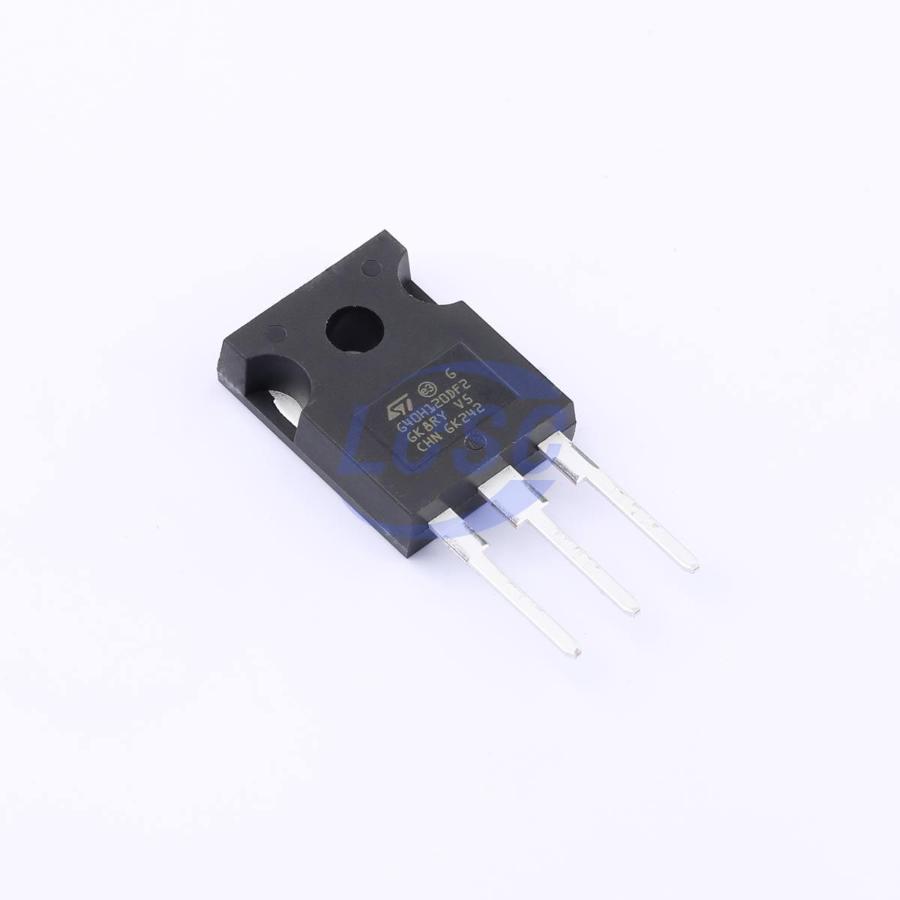

Manufacturer: STMicroelectronics
Mfr. Part #: STGW40H120DF2
Part Number: C2971506
Package: TO-247-3
Description: 468W 80A 1.2kV FS(Field Stop) TO-247-3 IGBT Transistors / Modules ROHS
Delivers By: Monday, March 23, 2026 *
Out of stock
📦 Standard Packaging: 30/Piece
Products Specifications
Td(off)
152ns
Pd - Power Dissipation
468W
Td(on)
18ns
Operating Temperature
-55℃~+175℃@(Tj)
Current - Collector(Ic)
80A
Collector-Emitter Breakdown Voltage (Vces)
1.2kV
IGBT Type
FS(Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic)
2.6V@15V,40A
Gate Charge(Qg)
187nC
Reverse Recovery Time(trr)
488ns
Switching Energy(Eoff)
1.32mJ
Turn-On Energy (Eon)
1mJ
Additional Information
Minimum Qty: 1
Multiple : 1
Standard Packaging: 30/Piece
