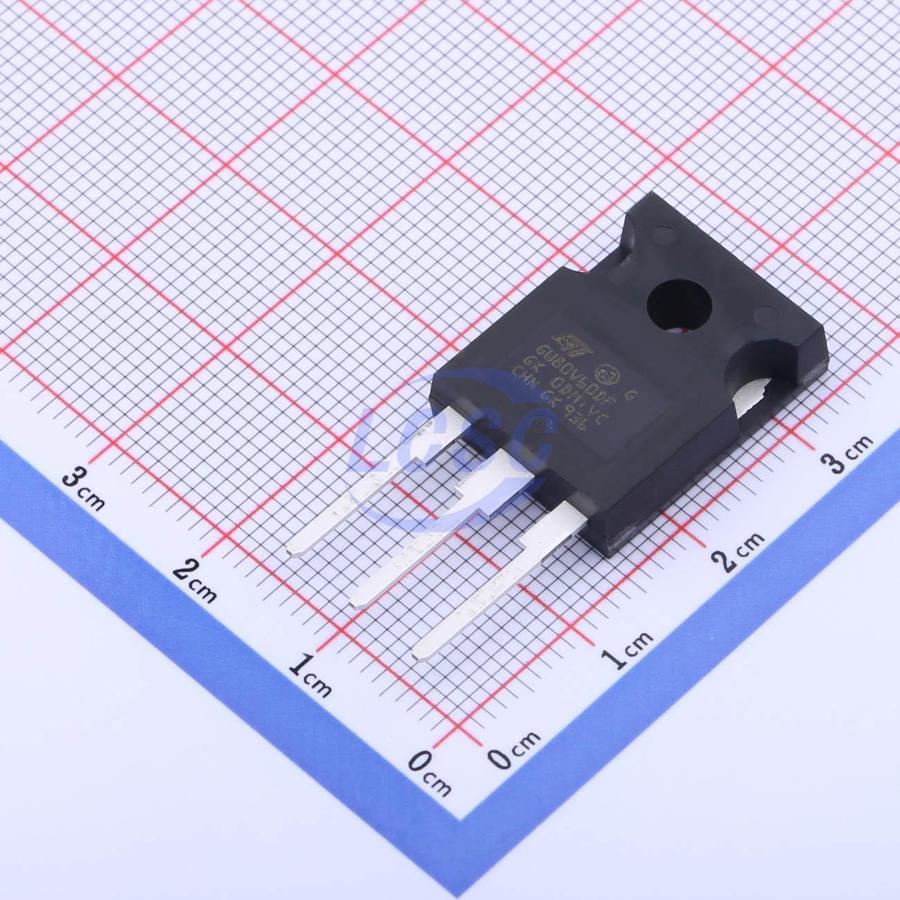

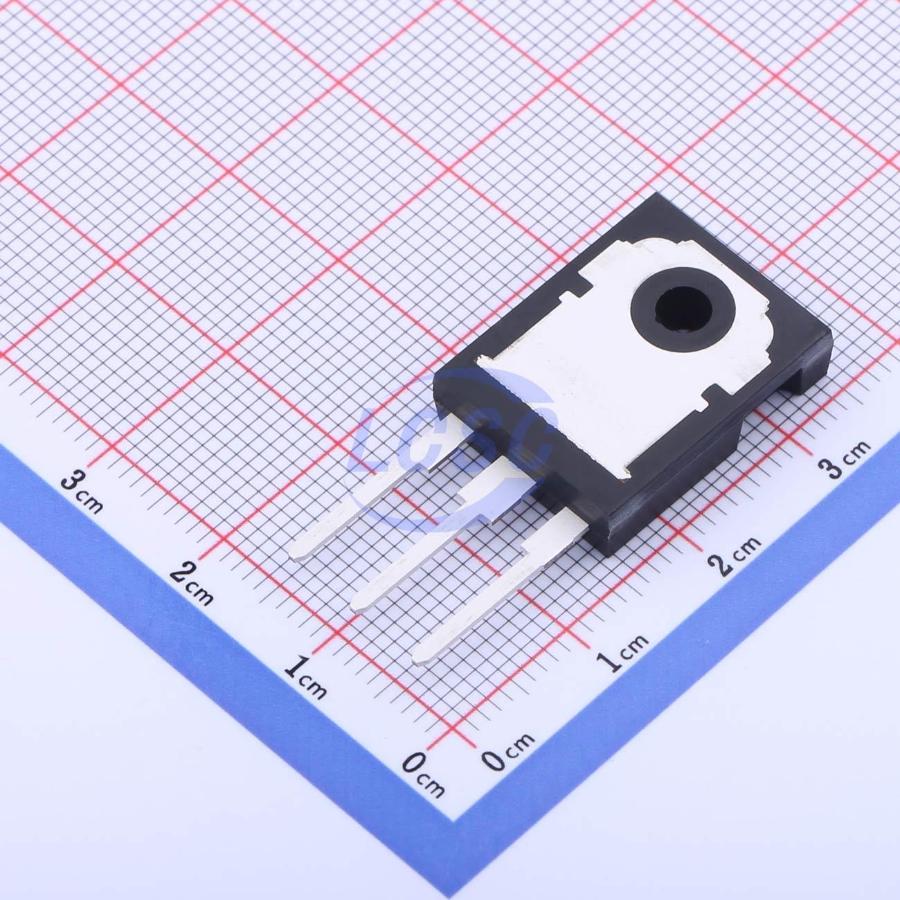

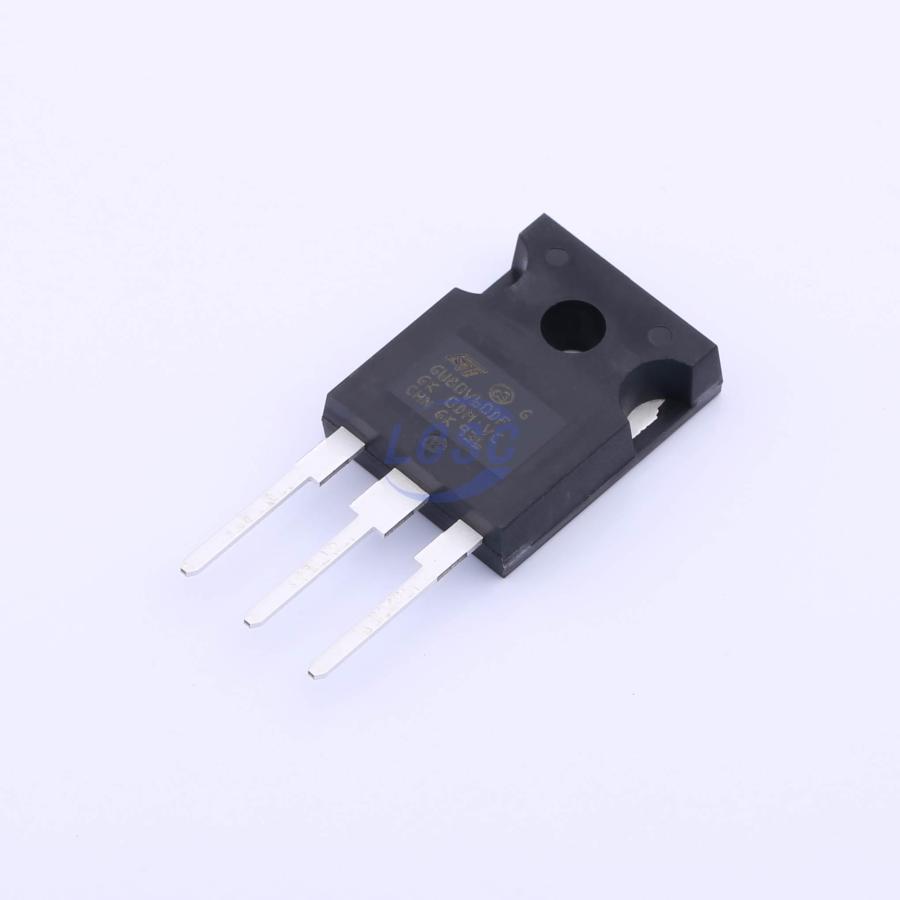

Manufacturer: STMicroelectronics
Mfr. Part #: STGW80V60DF
Part Number: C2985036
Package: TO-247
Description: 469W 120A 600V FS(Field Stop) TO-247 IGBT Transistors / Modules ROHS
Delivers By: Sunday, March 22, 2026 *
Out of stock
📦 Standard Packaging: 30/Piece
Products Specifications
Td(off)
220ns
Pd - Power Dissipation
469W
Td(on)
60ns
Operating Temperature
-55℃~+175℃@(Tj)
Current - Collector(Ic)
120A
Collector-Emitter Breakdown Voltage (Vces)
600V
IGBT Type
FS(Field Stop)
Gate Charge(Qg)
448nC
Reverse Recovery Time(trr)
60ns
Switching Energy(Eoff)
1mJ
Turn-On Energy (Eon)
1.8mJ
Additional Information
Minimum Qty: 1
Multiple : 1
Standard Packaging: 30/Piece
