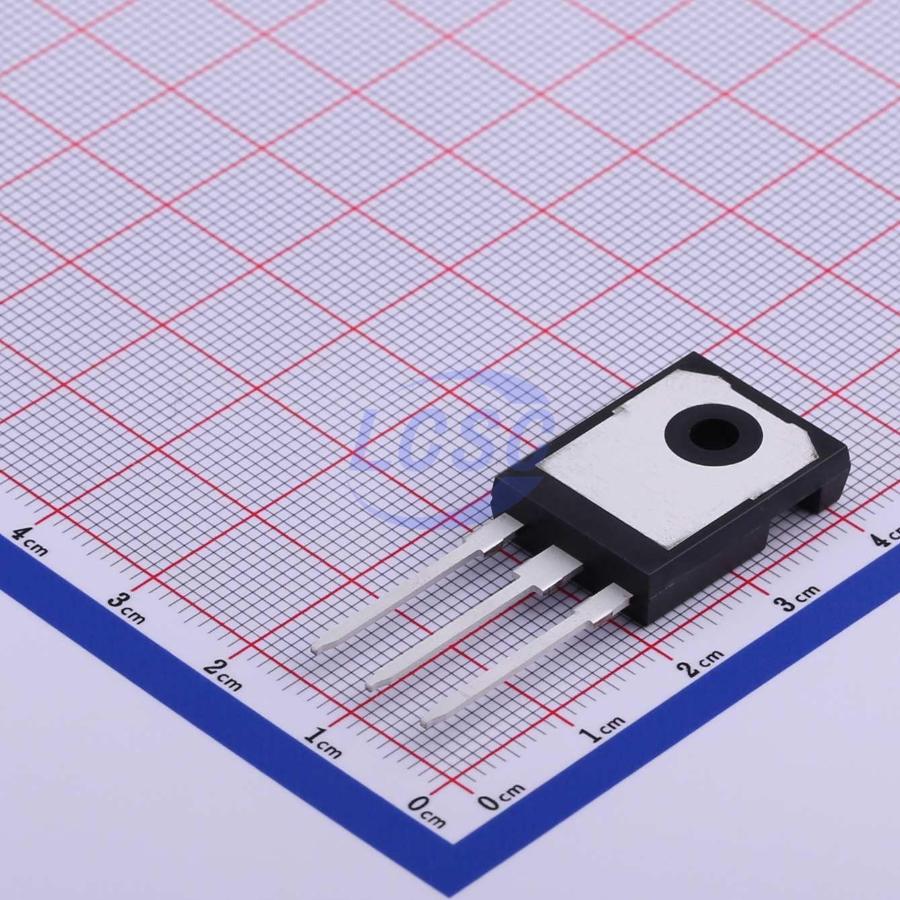

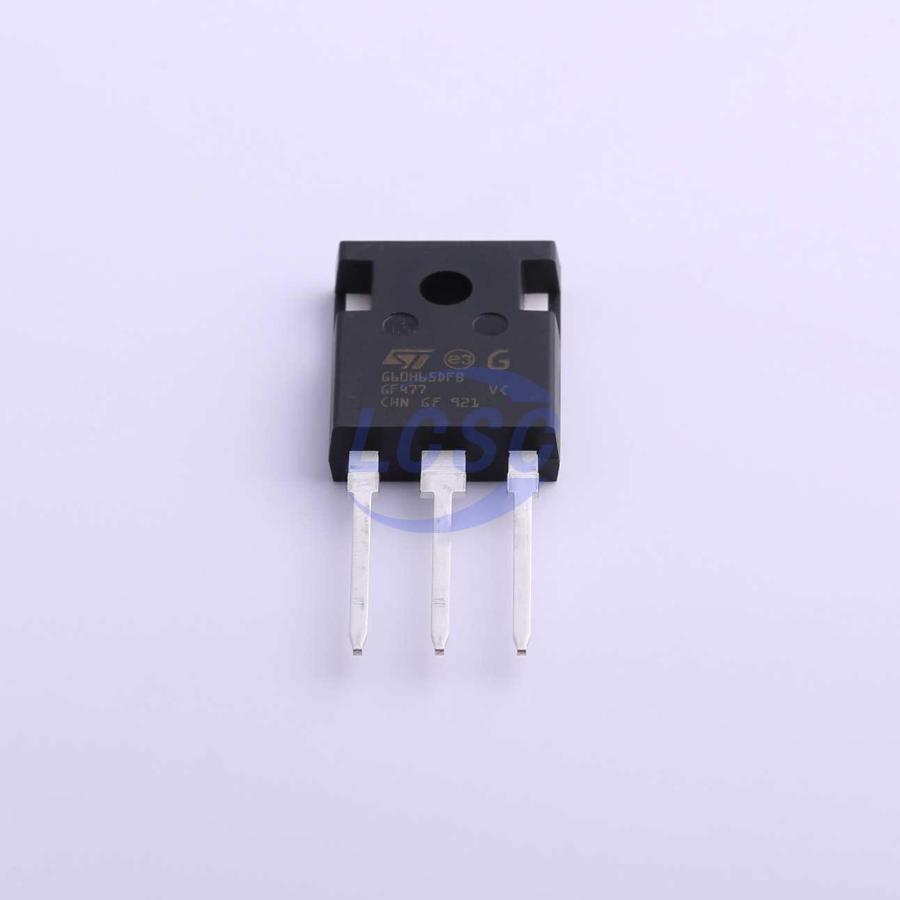

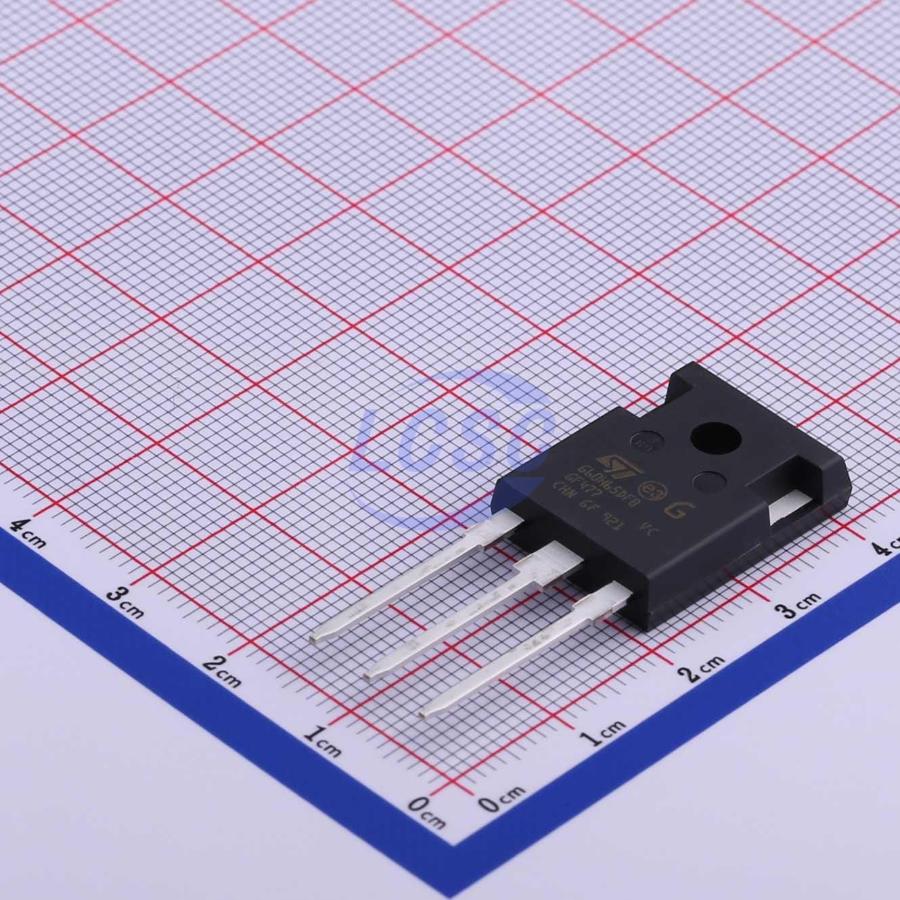

Manufacturer: STMicroelectronics
Mfr. Part #: STGWA60H65DFB
Part Number: C472600
Package: TO-247-3
Description: 375W 80A 650V FS(Field Stop) TO-247-3 IGBT Transistors / Modules ROHS
📦 589 in stock
Delivers By: Sunday, March 22, 2026 *
589 in stock
×
Total:
Bulk Pricing
1 - 9
Pieces
₹575.13
10 - 29 Pieces
₹496.70
(13% off)
30 - 99 Pieces
₹450.20
(21% off)
100 - 499 Pieces
₹403.00
(29% off)
500 - 999 Pieces
₹381.16
(33% off)
1,000+ Pieces
₹371.30
(35% off)
📦 Standard Packaging: 30/Piece
Products Specifications
Td(off)
210ns
Pd - Power Dissipation
375W
Operating Temperature
-55℃~+175℃@(Tj)
Td(on)
66ns
Current - Collector(Ic)
80A
Collector-Emitter Breakdown Voltage (Vces)
650V
IGBT Type
FS(Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic)
6V@1mA
Gate Charge(Qg)
306nC@60A,0~15V
Vce Saturation(VCE(sat))
1.6V@60A,15V
Reverse Recovery Time(trr)
60ns
Switching Energy(Eoff)
900uJ
Turn-On Energy (Eon)
1.59mJ
Input Capacitance(Cies)
7.792nF@25V
Voltage - Forward(Vf)
2V@60A
Additional Information
Minimum Qty: 1
Multiple : 1
Standard Packaging: 30/Piece
