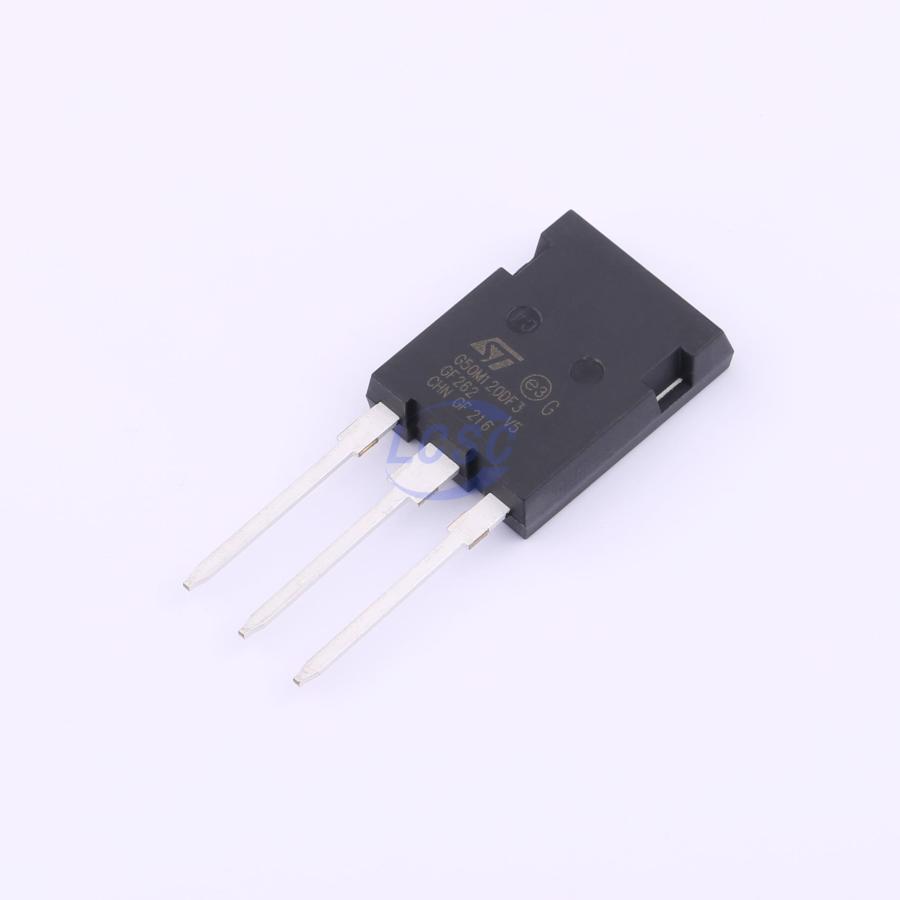

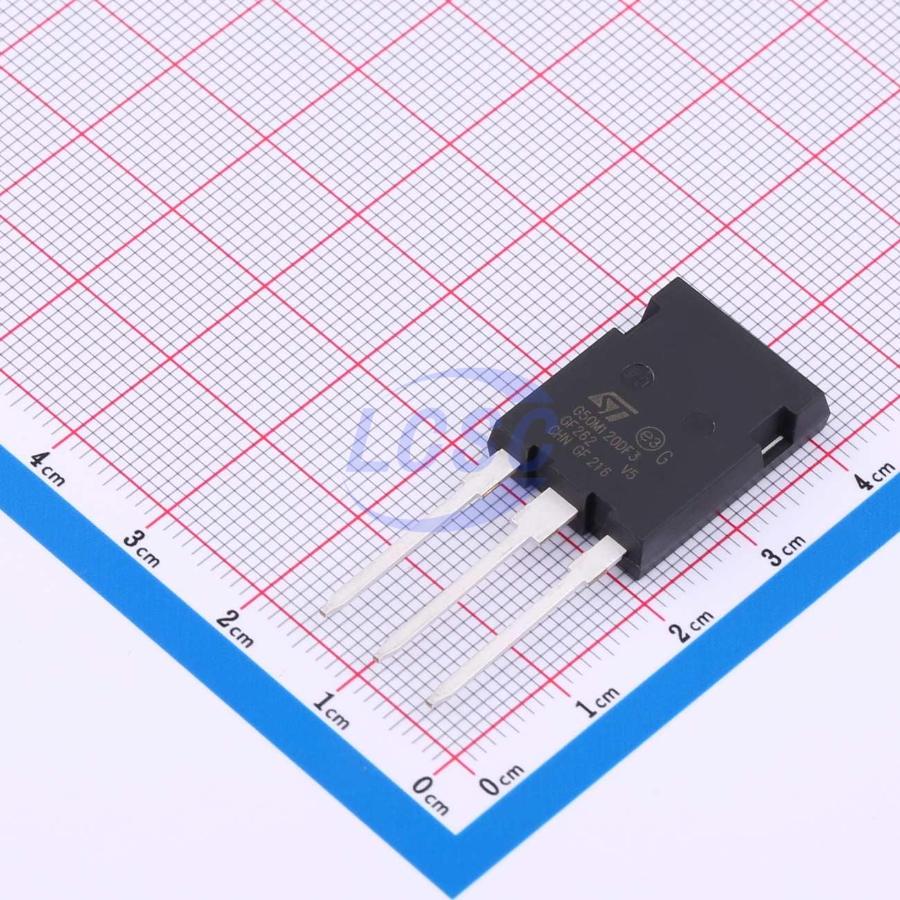

Manufacturer: STMicroelectronics
Mfr. Part #: STGYA50M120DF3
Part Number: C5268603
Package: TO-247-3
Description: 535W 100A 1.2kV FS(Field Stop) TO-247-3 IGBT Transistors / Modules ROHS
Delivers By: Sunday, March 22, 2026 *
Out of stock
📦 Standard Packaging: 30/Piece
Products Specifications
Td(off)
258ns
Pd - Power Dissipation
535W
Td(on)
38ns
Operating Temperature
-55℃~+175℃@(Tj)
Current - Collector(Ic)
100A
Collector-Emitter Breakdown Voltage (Vces)
1.2kV
IGBT Type
FS(Field Stop)
Gate Charge(Qg)
194nC
Reverse Recovery Time(trr)
325ns
Switching Energy(Eoff)
3.2mJ
Turn-On Energy (Eon)
2mJ
Additional Information
Minimum Qty: 1
Multiple : 1
Standard Packaging: 30/Piece
Related Resources
- Datasheet
- EasyEDA Model
