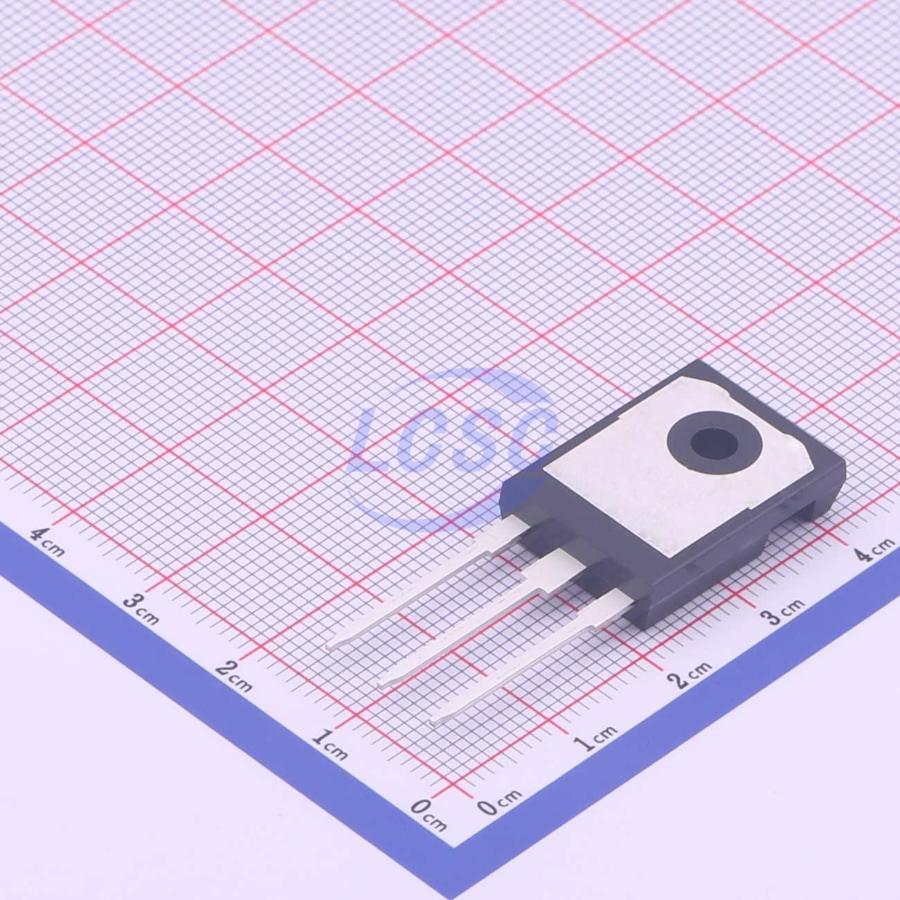

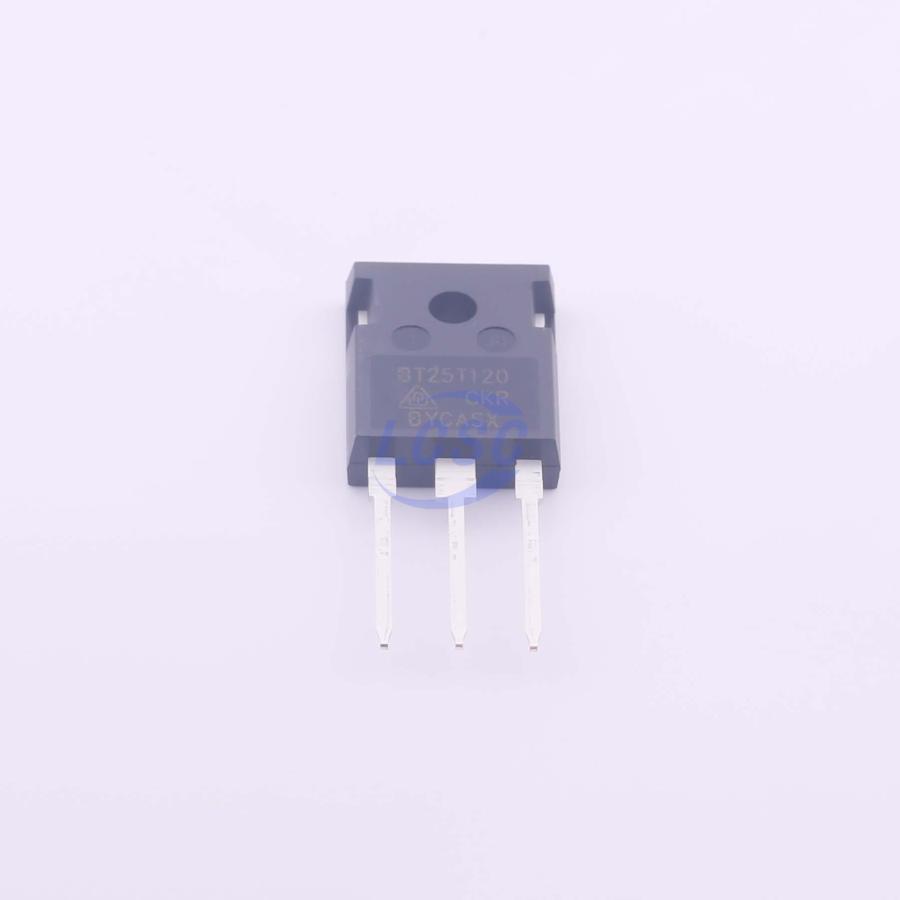

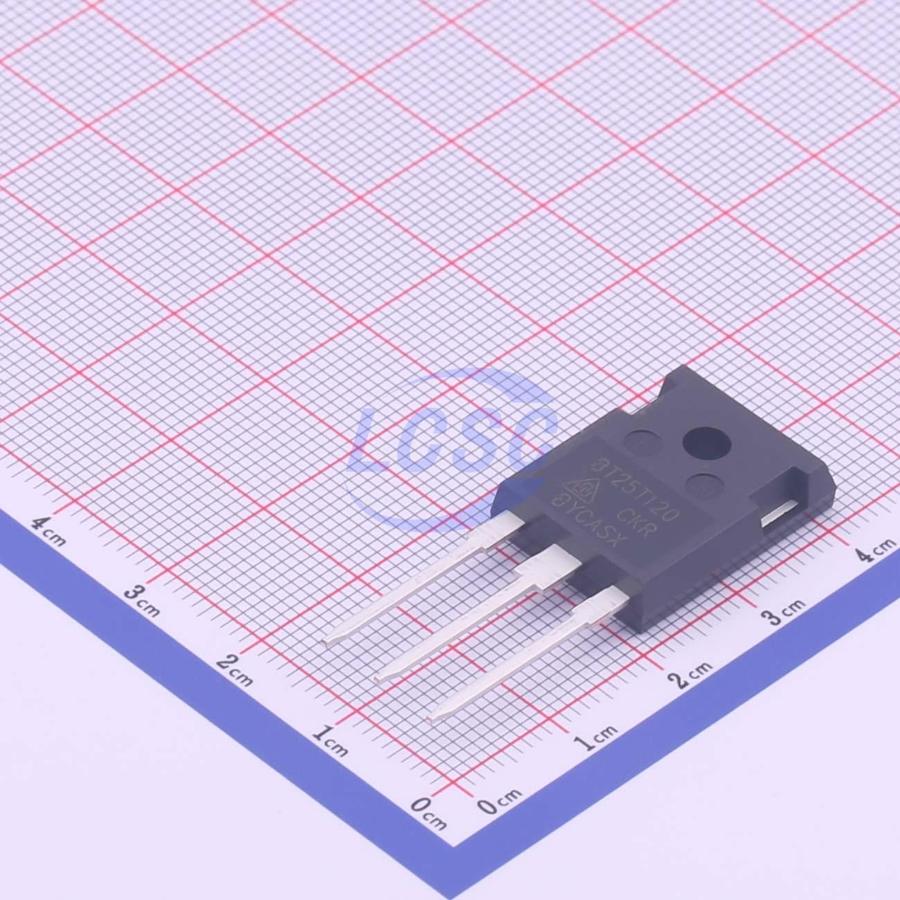

Manufacturer: Wuxi China Resources Huajing Microelectronics
Mfr. Part #: BT25T120CKR
Part Number: C696830
Package: TO-247-3
Description: 208W 50A 1.2kV TO-247-3 IGBT Transistors / Modules ROHS
Delivers By: Sunday, March 22, 2026 *
Out of stock
📦 Standard Packaging: 25/Piece
Products Specifications
Pd - Power Dissipation
208W
Td(off)
198ns
Td(on)
34ns
Current - Collector(Ic)
50A
Collector-Emitter Breakdown Voltage (Vces)
1.2kV
Gate-Emitter Threshold Voltage (Vge(th)@Ic)
5.8V@250uA
Gate Charge(Qg)
145nC@25A,15V
Vce Saturation(VCE(sat))
1.95V@25A,15V
Switching Energy(Eoff)
950uJ
Turn-On Energy (Eon)
1.88mJ
Input Capacitance(Cies)
2.37nF@30V
Voltage - Forward(Vf)
2.7V@25A
Additional Information
Minimum Qty: 1
Multiple : 1
Standard Packaging: 25/Piece
