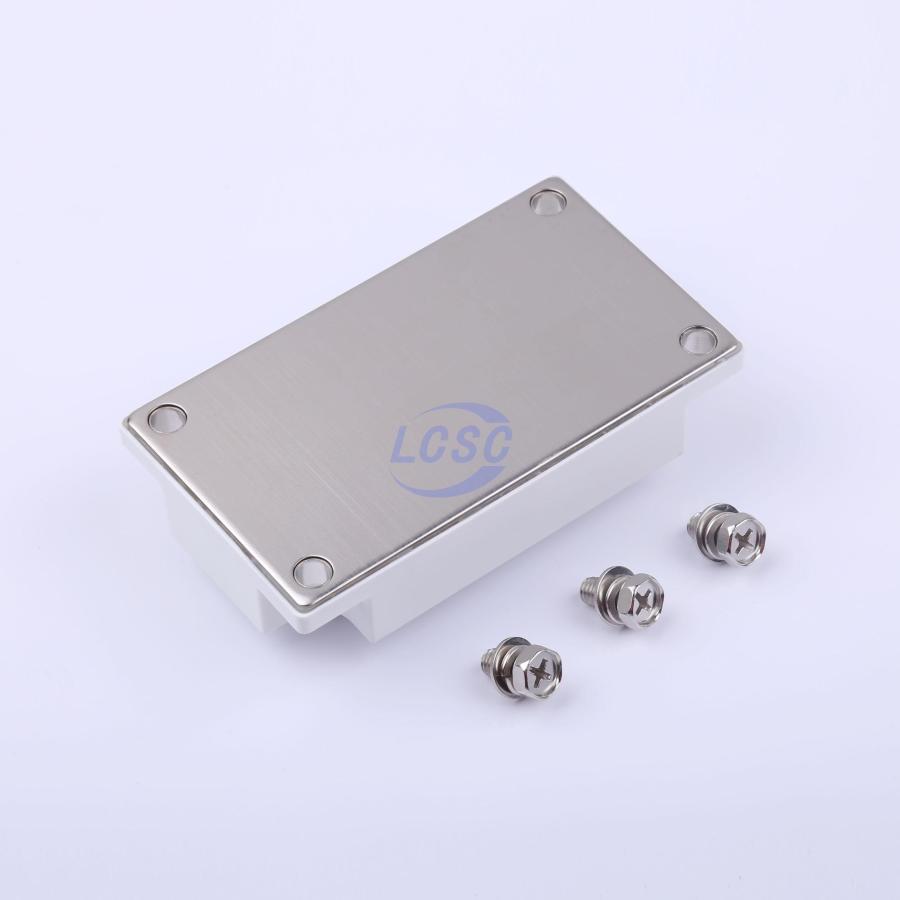

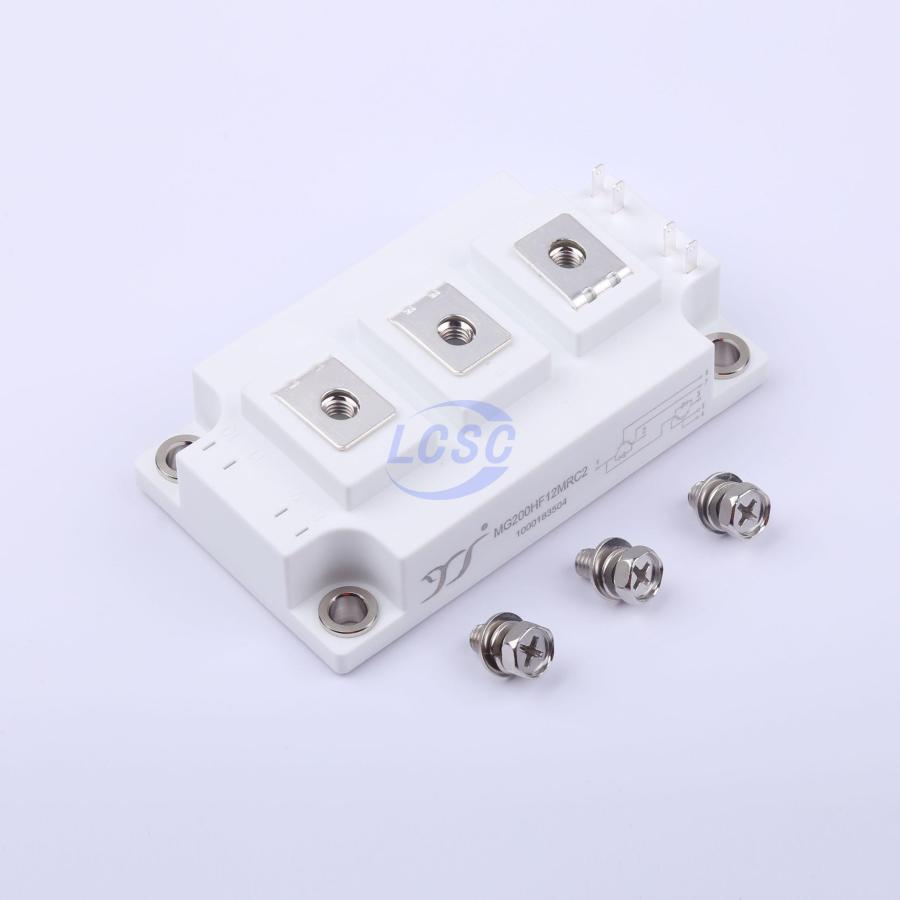

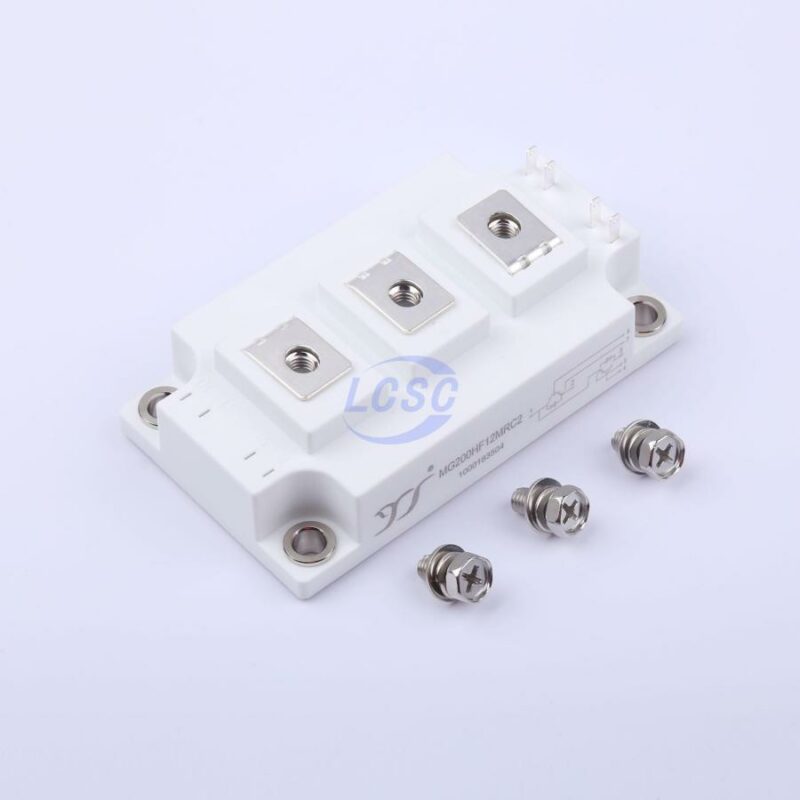

Manufacturer: Yangzhou Yangjie Elec Tech
Mfr. Part #: MG200HF12MRC2
Part Number: C781191
Package: -
Description: 1.15kW 300A 1.2kV IGBT module IGBT Transistors / Modules ROHS
Delivers By: Sunday, March 22, 2026 *
Out of stock
📦 Standard Packaging: 4/Piece
Products Specifications
Pd - Power Dissipation
1.15kW
Td(off)
490ns
Operating Temperature
-40℃~+150℃@(Tj)
Td(on)
135ns
Current - Collector(Ic)
300A
Collector-Emitter Breakdown Voltage (Vces)
1.2kV
IGBT Type
IGBT module
Gate-Emitter Threshold Voltage (Vge(th)@Ic)
6V@6mA
Vce Saturation(VCE(sat))
2V@150A,15V
Reverse Recovery Time(trr)
230ns
Switching Energy(Eoff)
13.6mJ
Turn-On Energy (Eon)
17mJ
Input Capacitance(Cies)
12.5nF@25V
Voltage - Forward(Vf)
2V@150A
Additional Information
Minimum Qty: 1
Multiple : 1
Standard Packaging: 4/Piece
